PANADES®
Flight Procedure Design System
Achieving greater efficiency in aircraft route design
PANADES is a packaged software solution for designing aircraft flight routes.
It features automated processing of many complex calculations involved in flight procedure design tasks, allowing users to generate flight areas with minimal parameter input.
One of its key strengths is the ability to create flight zones automatically with reduced manual effort.
EXPLORE MORE ON WHITE PAPER

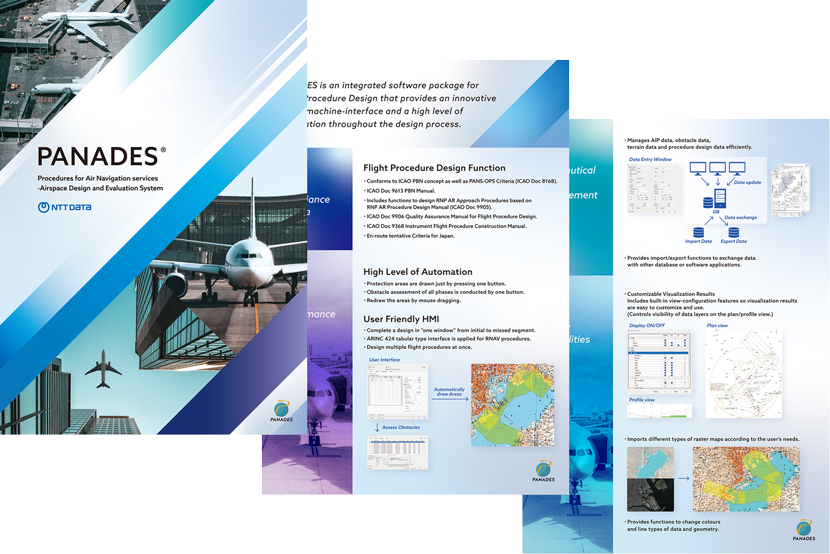

Implementing PBN Procedures with PANADES
This white paper outlines the key features and capabilities of PANADES, an integrated software solution for flight procedure design. It highlights its compliance with ICAO standards, advanced automation, intuitive user interface, aeronautical data management functions, and various tools that support flexible and efficient procedure development.
- Flight Procedure Design
- Aeronautical Data Management
- Display Capabilities
- Design Support Functions
Our approach
PANADES is an integrated software package for flight procedure design, offering an intuitive user interface and high automation throughout the design process.We also offer a wide range of support services, including implementation assistance, user training, and maintenance support.

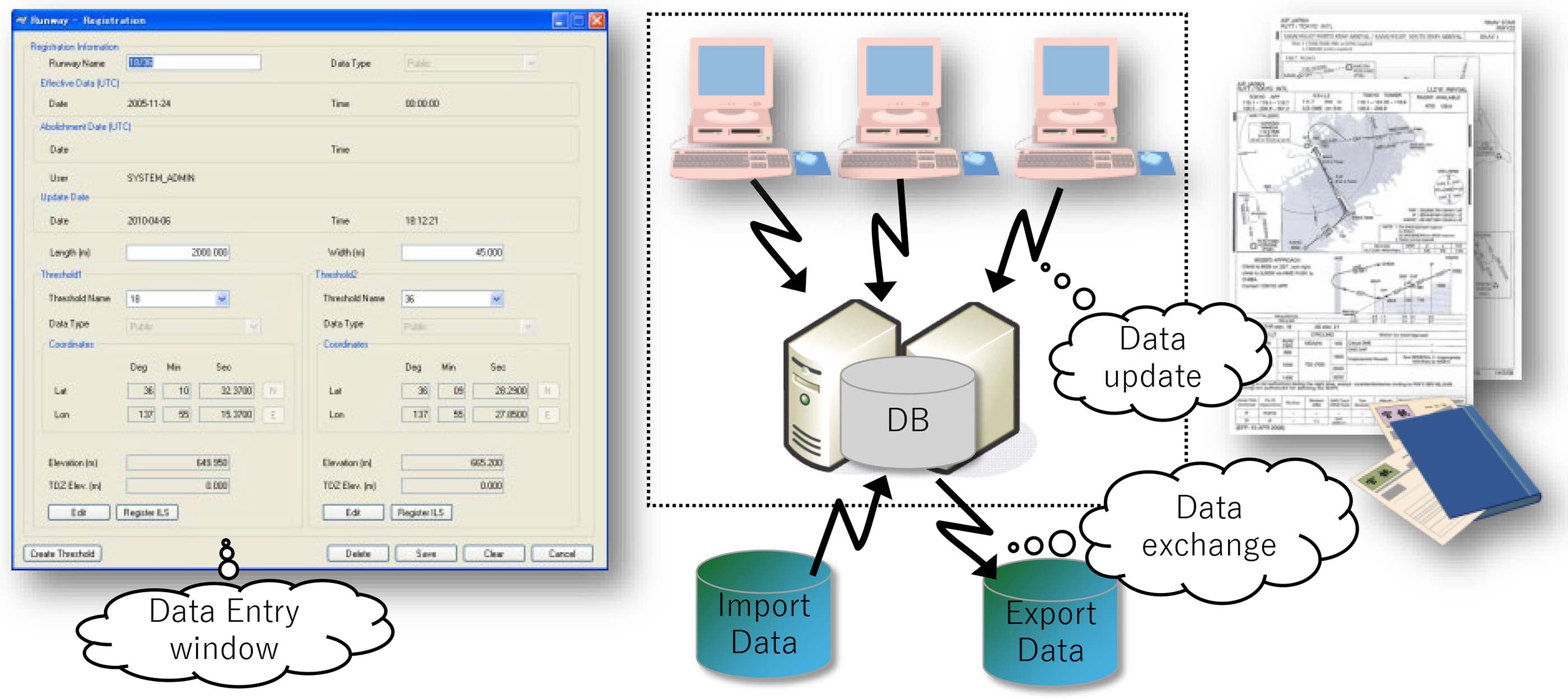

Data Management
- Register/Update Aeronautical and Geographical data
- Import/Export AIP/Procedure data

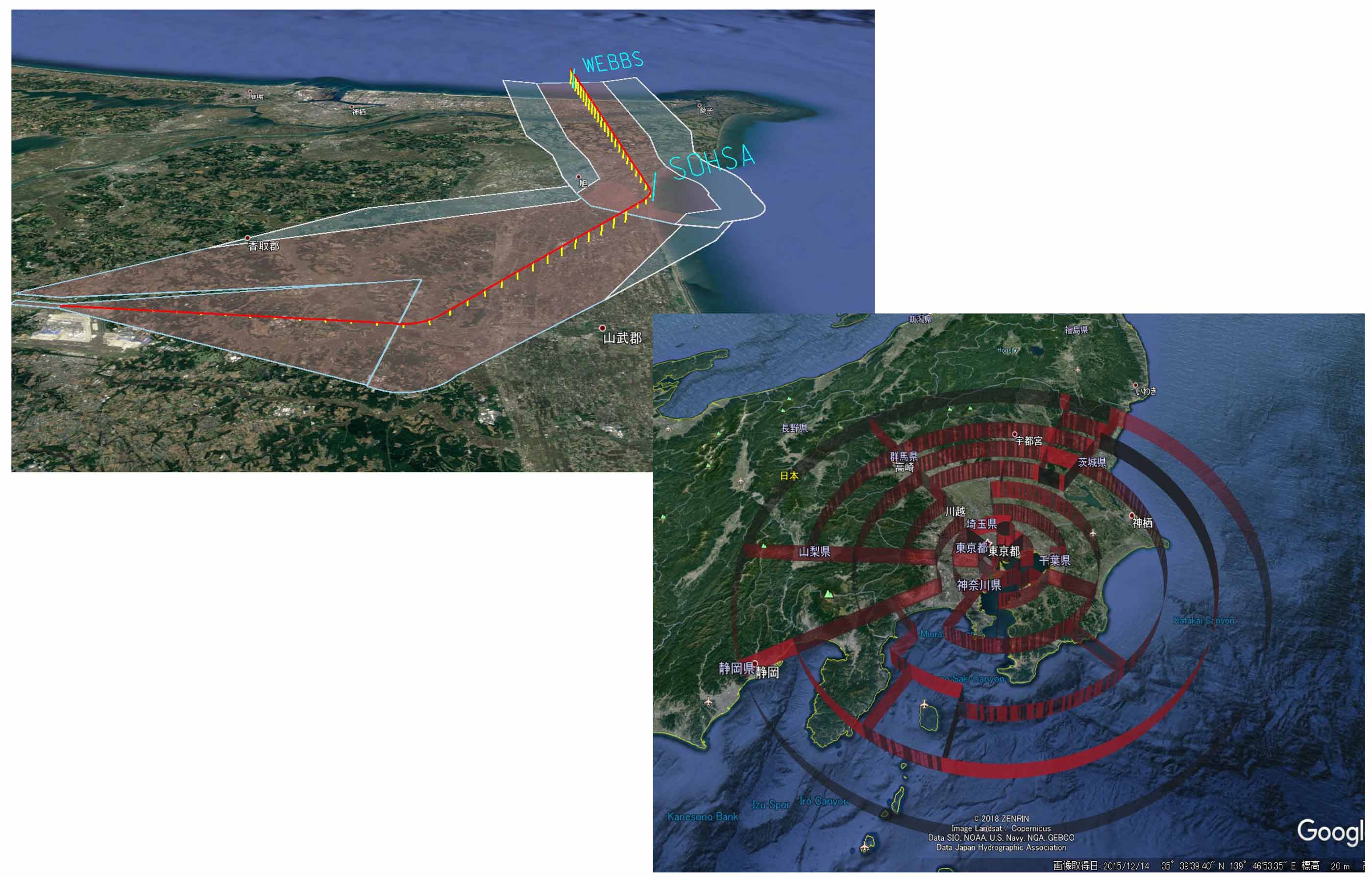

3D Flight Procedure Visualization
- By displaying the flight procedure design in 3D on Google Earth, coordination with related parties is smoother and easier to understand.
Features
PANADES is an integrated software package for flight procedure design, offering an intuitive user interface and high automation throughout the design process.We also offer a wide range of support services, including implementation assistance, user training, and maintenance support.
High Level of Automation
- Protection areas are drawn just by pressing one button.
- Obstacle assessment of all phases is conducted by one button.
- Redraw the areas by mouse dragging.

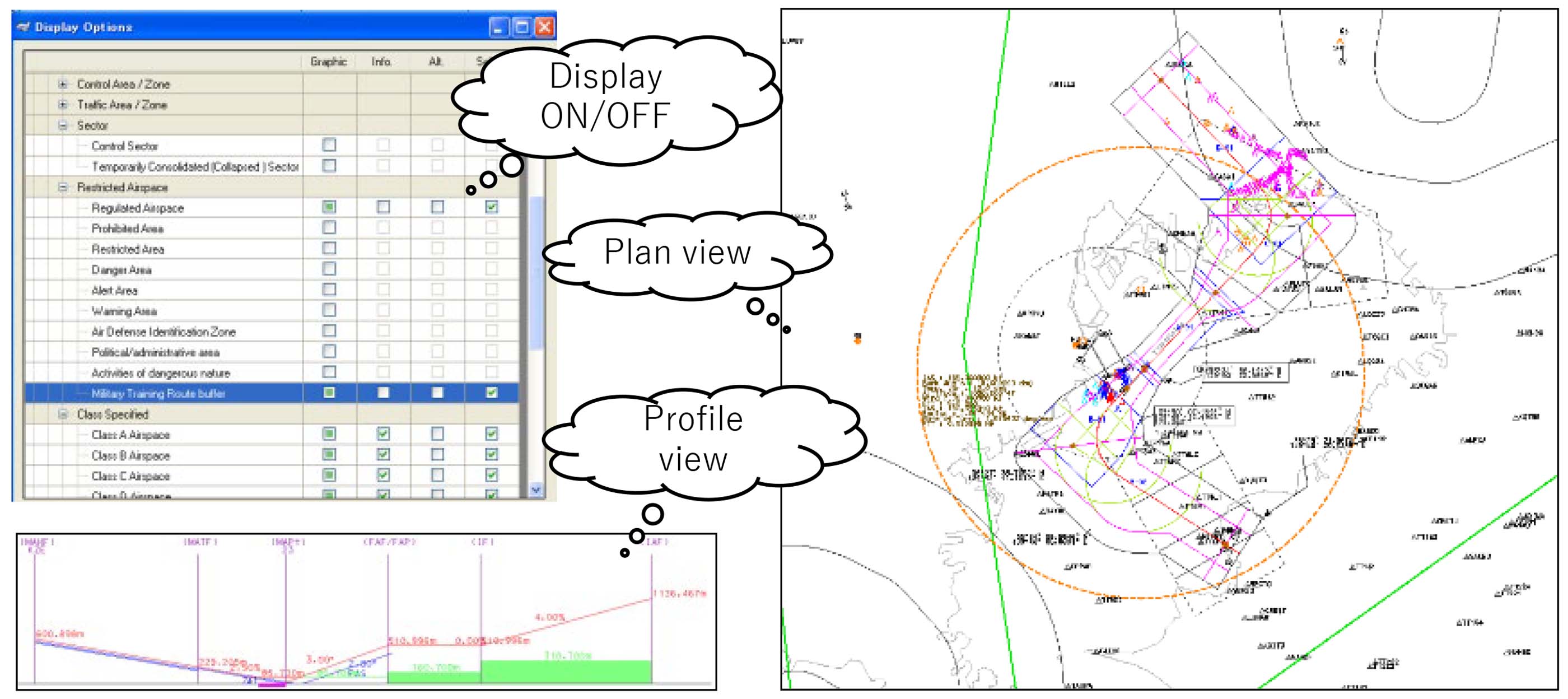

User Friendly HMI
- Complete a design in "one window" from initial to missed segment.
- ARINC 424 tabular type interface is applied for RNAV procedures.
Useful tool set for Procedure Design
- Snap and paste the useful information from the designed geometry.
- Show distance line for departure and missed approach assessment.
Integrated Database Management
- Each data includes effective date, user authority and data type to enable efficient data administration.
Resource Library
Introducing PANADES Videos and Related Resources
The minimum system requirements are as follows
| OS | Windows 11 Professional |
|---|---|
| CPU | Intel or AMD processor 2.5 GHz or greater |
| Memory | 16GB RAM or greater |
| Graphic card | 1GB RAM DirectX 10.0 or greater |
| HDD | 100GB for installation, 100GB or more for data save |
| Monitor | 19 inch's dual display is recommended |
News
-
August 6, 2024
Notes
- PANADES is a trademark of NTT DATA Japan Corporation, and is used with its product only in JAPAN, EUTM, and UK.
- For inquiries, please contact：info@airpalette.net
